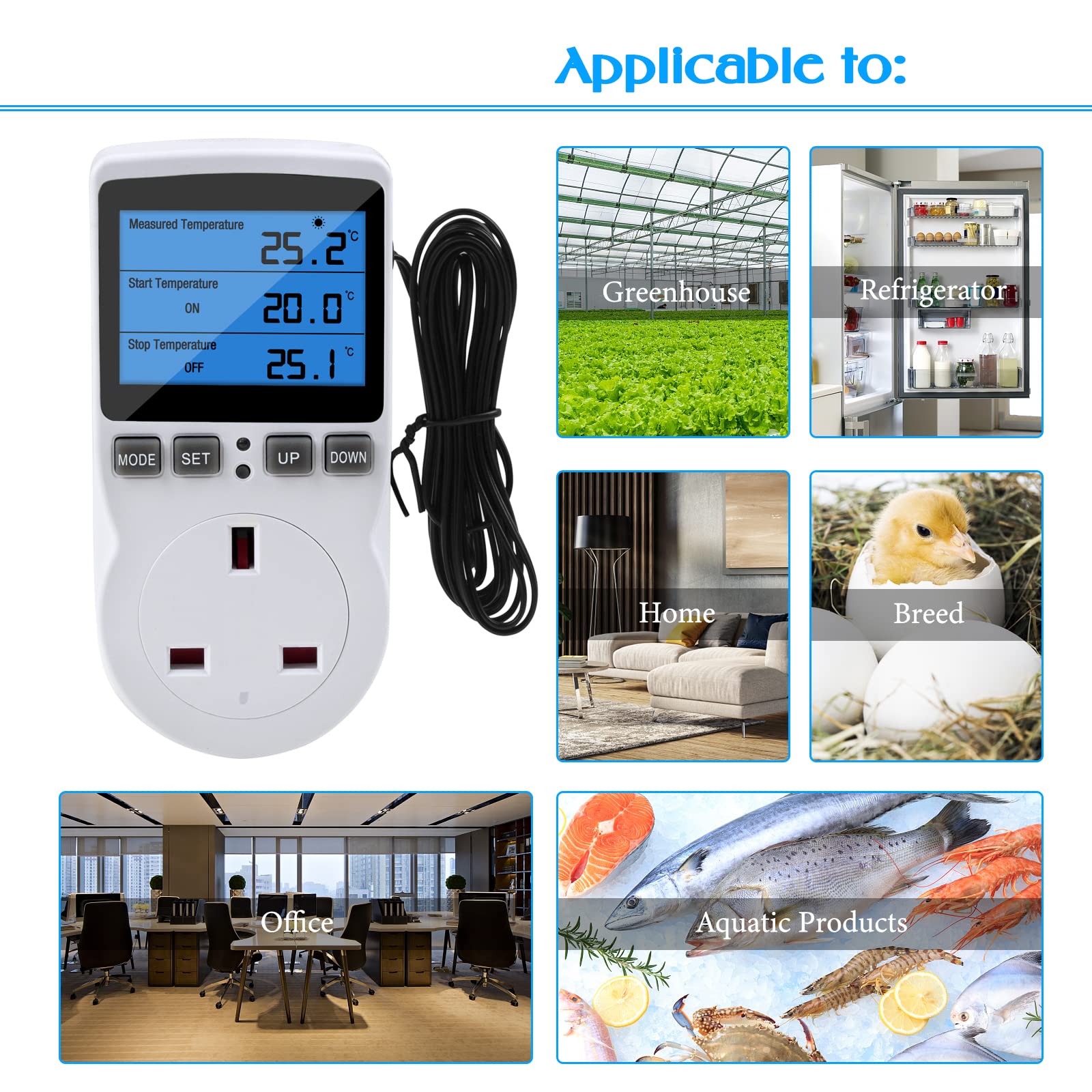

Gobesty Digital Temperature Controller Socket, 230V 16A Thermostat LCD Display Backlight Smart Switch Plug with Timer, 1.8 m Sensor for Greenhouse, Aquarium, C01144

Description

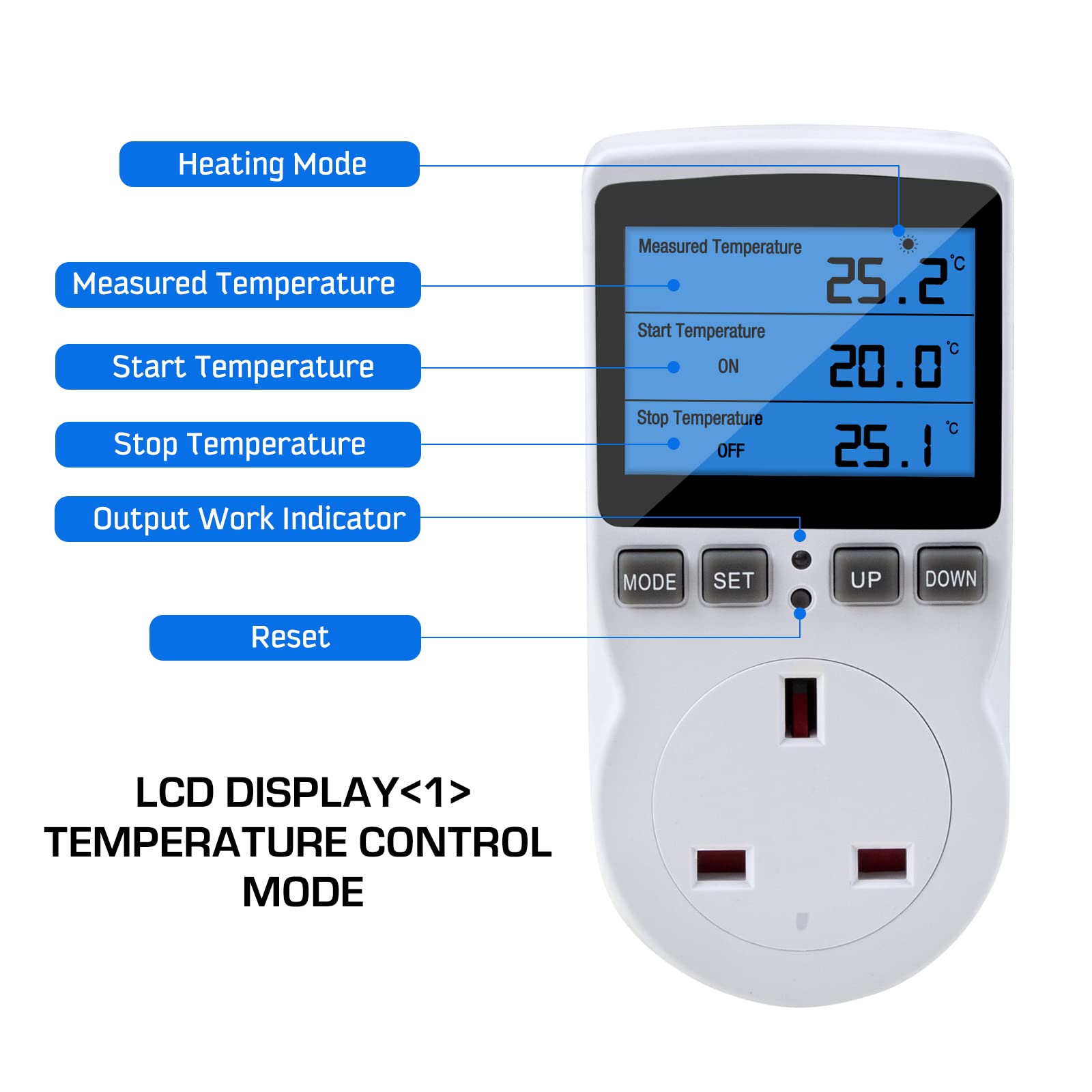

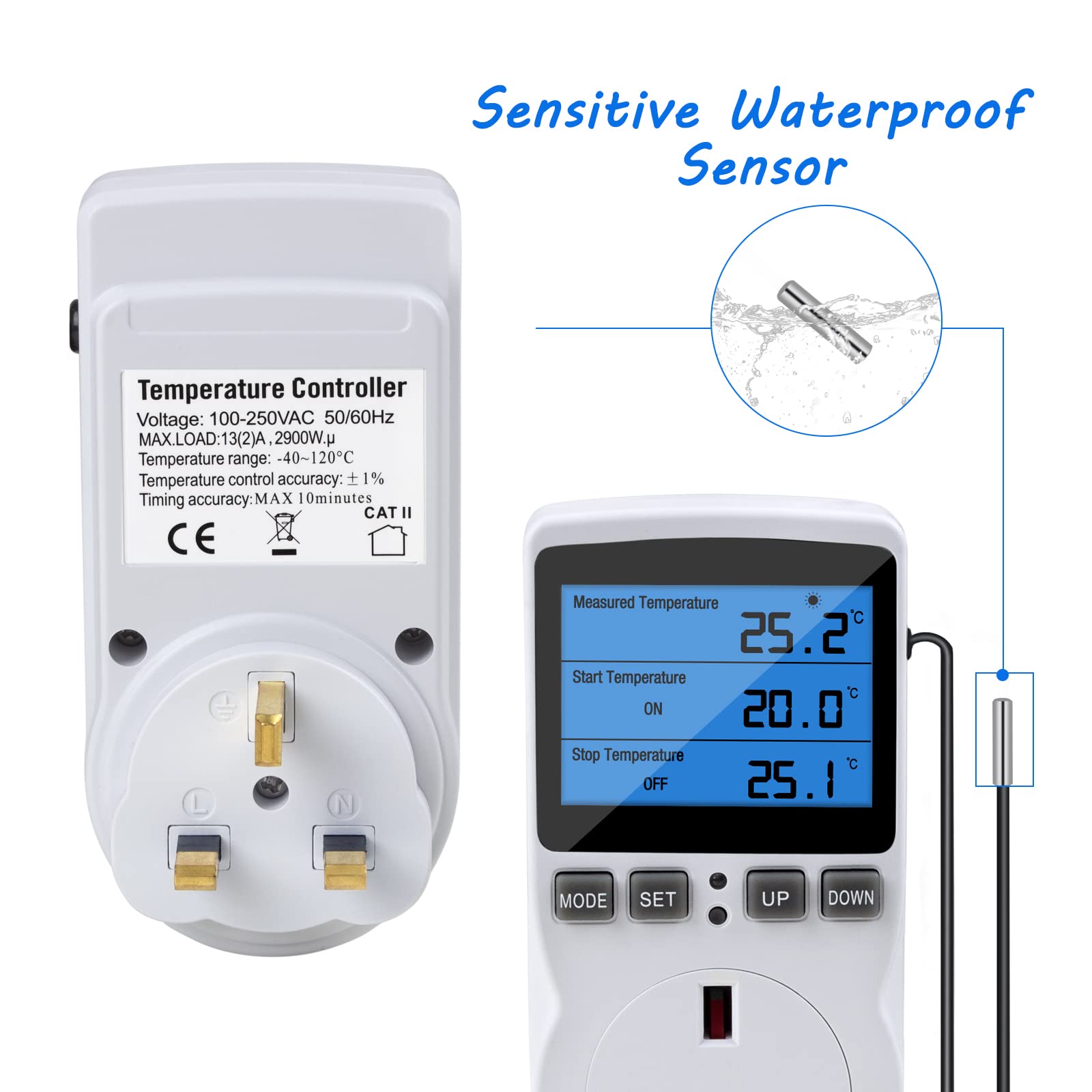

Specification: 1. Rated voltage: 230VAC 50HZ 2. Rated load: MAX 16A 3680W 3. Temperature range: -40-120 Degree C 4. Temperature control error: 1 Percent 5. Temperature display resolution: 0.1 Degree C 6. Timing error: MAX 10 minutes 7.Product contains: 1 x digital temperature controller thermostat, 1x manual F01: Cycle Timing Mode Press ''MODE'' key to switch to F01. Press the ''SET'' button to set the ON value (start hour/minute) and OFF value (stop hour/minute). The ON value is the working time of the system, and the OFF value is the stop time of the system. This mode is the cycle time, which can control the system to work intermittently. F02: Timing On Mode Press ''MODE'' key to switch to F02. Press the ''SET'' button and set the hour/minute. In this mode, the system is controlled to work at the specified time. For example, if CD ON is set to 30 minutes, the countdown will start and the system will automatically start after 30 minutes. F03: Timing Off Mode Press ''MODE'' key to switch to F03. Press the ''SET'' button and set the hour/minute. In this mode, the system is controlled to stop at the specified time. For example, if you set CD OFF to 30 minutes, the countdown will start and the system will automatically stop after 30 minutes. F04: Timing On/Off Mode Press ''MODE'' key to switch to F04. Press the ''SET'' button and set the CD ON value (hour/minute) and CD OFF value (hour/minute). In this mode, the system is controlled to start and stop at the set time. For example, if you set CD ON to 30 minutes and CD OFF to 40 minutes, the system will start working after 30 minutes, and when the system starts working, it will stop working after 40 minutes.
